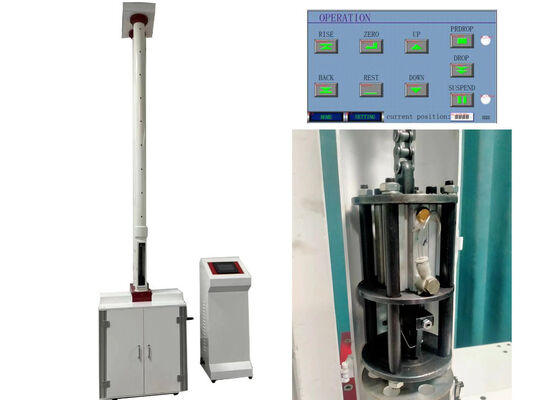

Drop Hammer Test Equipment
Professional testing instrument for precise impact force application to determine material resistance and failure modes with maximum testing energy of 300J.
Equipment Overview
This advanced drop hammer test equipment features a wide weight range from 0.5kg to 16kg, providing exceptional flexibility for diverse testing applications. With multiple hammer dimension specifications including D25mm and D90mm, the system accommodates various materials and structural components with different contours and dimensions.
Key Specifications
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc. |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Sample Diameter |
Φ16mm-Φ630mm |
| Impact Center Deviation |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
715mm×700mm×3900mm |
| Net Weight |
380kg |
Product Features
- Product Name: 0-300J Test Range Drop Hammer Test Equipment with D90mm Hammer Diameter for PVC-O
- Hammer Diameter: Multiple dimensional options including D25mm, D90mm and other specifications
- Drop Hammer Quality: Adjustable weight range from 0.5kg to 16kg
- Maximum Height: Effective testing height up to 2000mm
- Standards Compliance: Conforms with ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411 and other industrial standards
- High Precision: Testing precision of 0.5%
Applications
This equipment is engineered for impact assessment of non-metallic substances including plastic, glass, pottery and related materials. It evaluates anti-impact strength capacity and supports testing on materials with identical types and specifications for quality comparison. Suitable for various pipe products including PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plates.
Technical Support & Services
We provide comprehensive technical backing and after-sales service including field installation, routine upkeep, fault diagnosis and instrument calibration. Custom technical solutions are available for individualized application requirements. Our service personnel are available 24/7 to respond to inquiries and resolve technical issues promptly.
Packing & Shipping
All equipment units are securely encased in export-grade wooden crates for full protection during transit. Each package includes the main test unit, official operation manuals, supporting components and spare accessories. Complete documentation is prepared for global logistics procedures including commercial invoices, packing lists and required certificates.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Professional testing instrument from Beijing JHH designed for evaluating impact resistance performance of various test samples.
What is the core function?
Assesses impact resistance of different products for standardized product quality validation.
What test objects are applicable?
Multiple pipe products and hard plastic plates including PVC-U, PE, and various plastic materials.
What precision level does it achieve?
High testing precision of 0.5%.
What is the maximum testing energy?
Maximum testing energy of 300J.
